Home Area, Site, and Roadway OAL3150SUNVSWH3 - OAL3 Series 100/120/150W LED Area Light, Type III, CCT Selectable, 120-277V, White Finish by Nicor
Specification Sheet
Installation Instructions

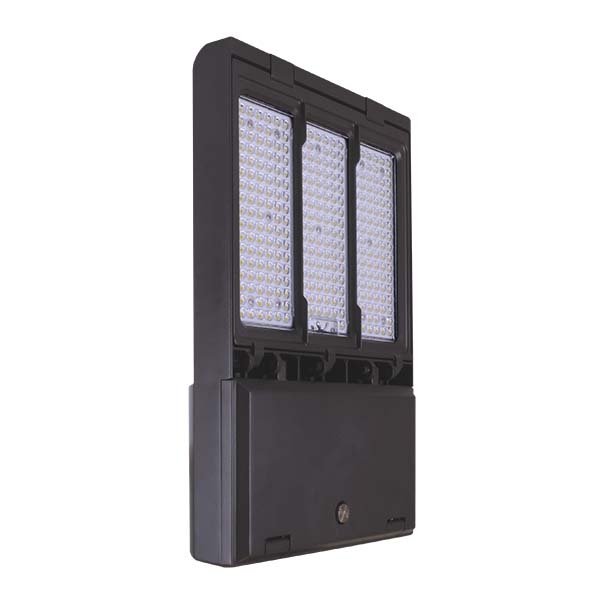

OAL3150SUNVSWH3 - OAL3 Series 100/120/150W LED Area Light, Type III, CCT Selectable, 120-277V, White Finish by Nicor

$265.83

  • Field swappable, high impact polycarbonate lenses
  • Type III distribution standard
  • Type II, IV and V distributions optional
  • Selectable CCT of 3000/4000/5000K on 150W and 300W models
  • Single CCT of 5000K on 200W model
  • Standard 80 CRI to improve safety and color definition in public places
  • Wattage selectable 150/120/100W and 300/240/200W
  • Input voltage of 120-277VAC or 277-480VAC
  • Operating temperature rating of -40° to 113°F (-40°C to 45°C)
  • 3-pin receptacle with shunt standard
  • 12V output allows for control of most standard low voltage sensors
  • Standard full-range dimming with 0-10VDC dimmers
  • Available in Bronze (BZ) and White (WH) finishes

Brand :
NICOR
Model Number :
OAL3150SUNVSWH3
Shape :
Rectangular
Optics :
Type III
Mounting :
Direct To Pole, Slip Fitter, Trunnion, Wall Adjustable, Wall Fixed
Voltage :
120-277V
Lumens :
Selectable 12,633-13,871 lm/15,158-16,643 lm/18,940-20,796 lm
Watts :
Selectable 100/120/150W
Color Temperature :
3000K, 4000K, 5000K, Selectable
CRI :
80+
Dimmable :
Yes
Finish :
White
Ratings :
DLC Premium, Wet Location
Safety Certification :
UL Listed, RoHS Compliant, IP65, DLC Premium, FCC
Dimensions (L x W x H) :
17.2" x 11.2" x 2.5"
Weight :
10.5
