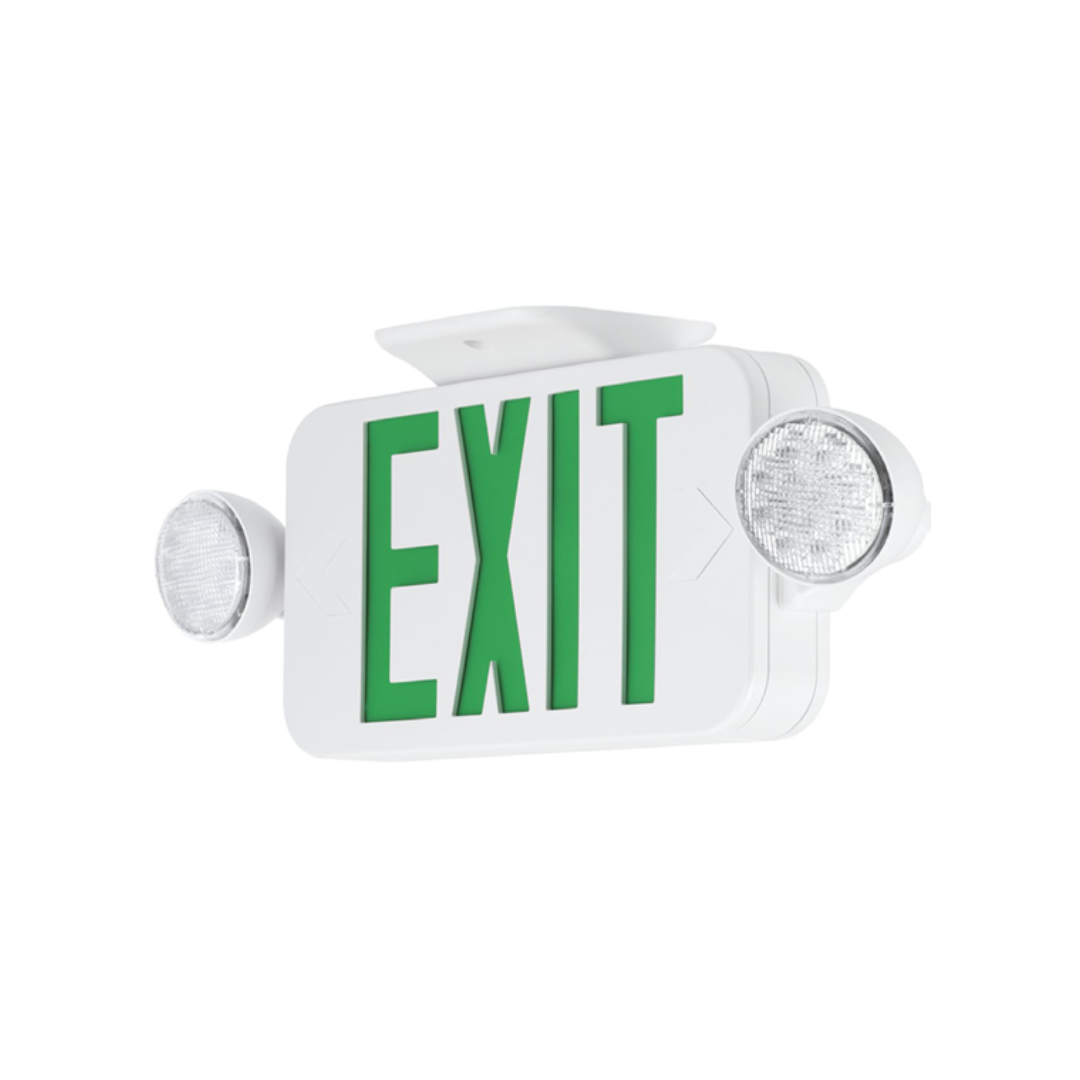

Home Exit Signs Exit & Emergency Series EXC Exit Sign/Emergency Combo by ILP
Specification Sheet

Exit & Emergency Series EXC Exit Sign/Emergency Combo by ILP

From : $60.00


  • Dual-voltage input 120V/277V
  • Optional (-SD) Self Diagnostic versions available
  • (-RC) Remote-Capable models feature a maintenance-free NiMH battery
  • Energy-saving LED back-lit system
  • Optional (-RC) Remote-Capable version supports up to two single or one double High-Output lighting heads
  • Two factory-installed fully adjustable, glare-free LED lighting heads
  • Standard Output model includes two 0.6W heads
  • High Output model includes two 1.7W heads
  • Injection-molded, high-impact, UV-stabilized, UL94 V-0 thermoplastic construction in white finish
  • Snap-fit faceplate design for installation without tools
  • Removable universal chevrons for directional indications
  • Top, back or J-box mounting through universal mounting plate and canopy
  • Universal single face and double face (extra faceplate included)
  • Temp rating: 60°-86°F (20°-30°C) damp-rated
  • DOE and CEC Registered
  • UL 924 Listed for damp location
  • 5-year warranty on all electronics and housing
  • Separate 5-year pro-rated warranty on the battery




Color :
Housing :
Battery Backup :
Output :
Remote Capability :
Brand :
ILP
Model Number :
EXC1-U-2
Type :
Exit/Emergency Combo
Mounting :
End, J-Box, Surface, Wall
Voltage :
120-277V
Sided :
Universal
Letter Color :
Red, Green
Housing Color :
White
Face Plate Color :
White
Battery Back-Up :
Yes
Remote Capable :
Yes
Safety Certification :
UL924
Dimensions (L x W x H) :
18" x 1.75" x 8.12"
