Home Wall Packs CWPK 20/40/60W Full Cutoff Wall Pack w/ Dusk-to-Dawn Photocell, 3 Lumen Boost & 3 CCT Color Preference w/ Emergency BBU by ETI
Specification Sheet
Installation Instructions

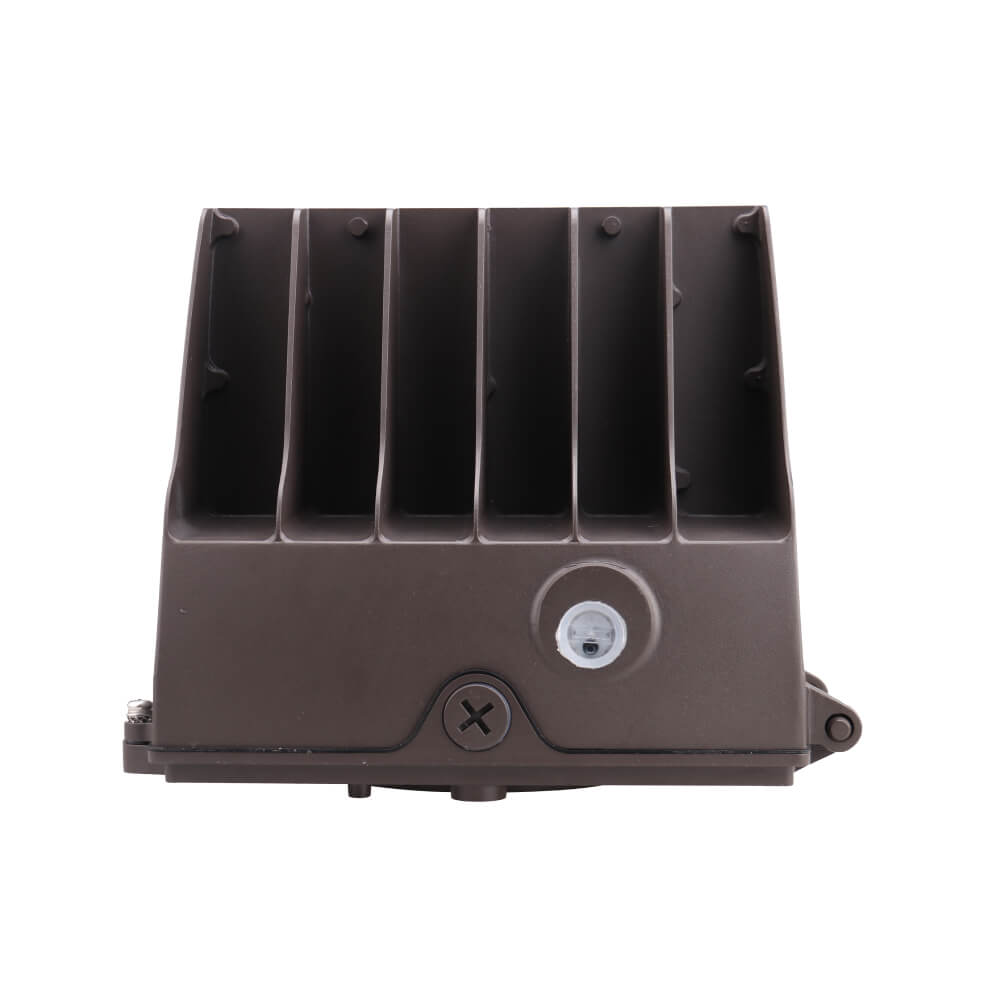

CWPK 20/40/60W Full Cutoff Wall Pack w/ Dusk-to-Dawn Photocell, 3 Lumen Boost & 3 CCT Color Preference w/ Emergency BBU by ETI

$236.05

ETi SSL’s full cutoff design maximizes light distribution and application spacing, while eliminating uplight. It features a Dusk-to-Dawn photocell w/ enable disable capability, three selectable CCTs and three selectable wattages—giving you flexibility and efficiency.

  • 3 Lumen Boost Levels: Lumen Package 1: 2800 – 8600 lm (20|40|60W)
  • Color Preference Select from 3 CCTs (3000K/4000K/5000K)
  • Corrosion resistant, rugged die-cast aluminum housing with bronze powder coat paint finish
  • Hinged housing allows for easy access to wiring, photocell, wattage and CCT select
  • PMMA TIR (Total Internal Reflectance Lens) provides diffused, uniform light quality
  • Dusk to Dawn Photocell w/ enable disable standard
  • Efficacy: Up to 152 LPW
  • Universal 120-277 voltage
  • 0-10 dimming
  • Long Life: rated for > 50,000 hours (L70)

Brand :
ETI
Model Number :
CWPK-1-LB3-CP3-MV-LVD-EM
Style :
Full Cut Off
Optics :
Type IV
Mounting :
Fixed Wall Mount
Watts :
20/40/60W
Lumens :
2,880-8,578 lm
Voltage :
120-277V
Color Temperature :
3000K, 4000K, 5000K, Selectable
CRI :
80+
Finish :
Bronze
Dimmable :
Yes
Ratings :
IP65, Wet Location
Certifications :
UL Listed, DLC Premium, IP65 Rated, RoHS Compliant, FCC
Dimensions (L x W x H) :
9.84" x 8.07" x 6.02"
