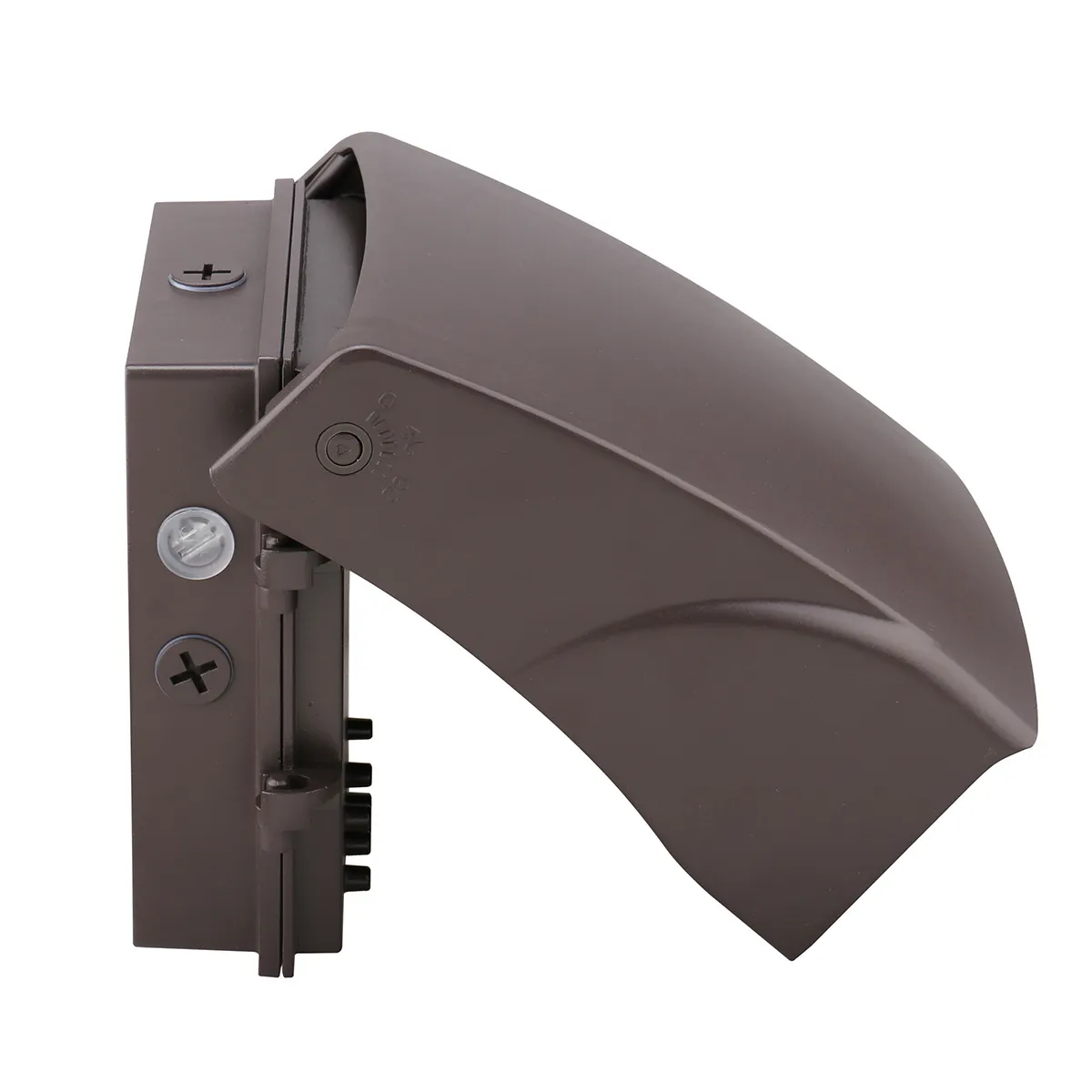

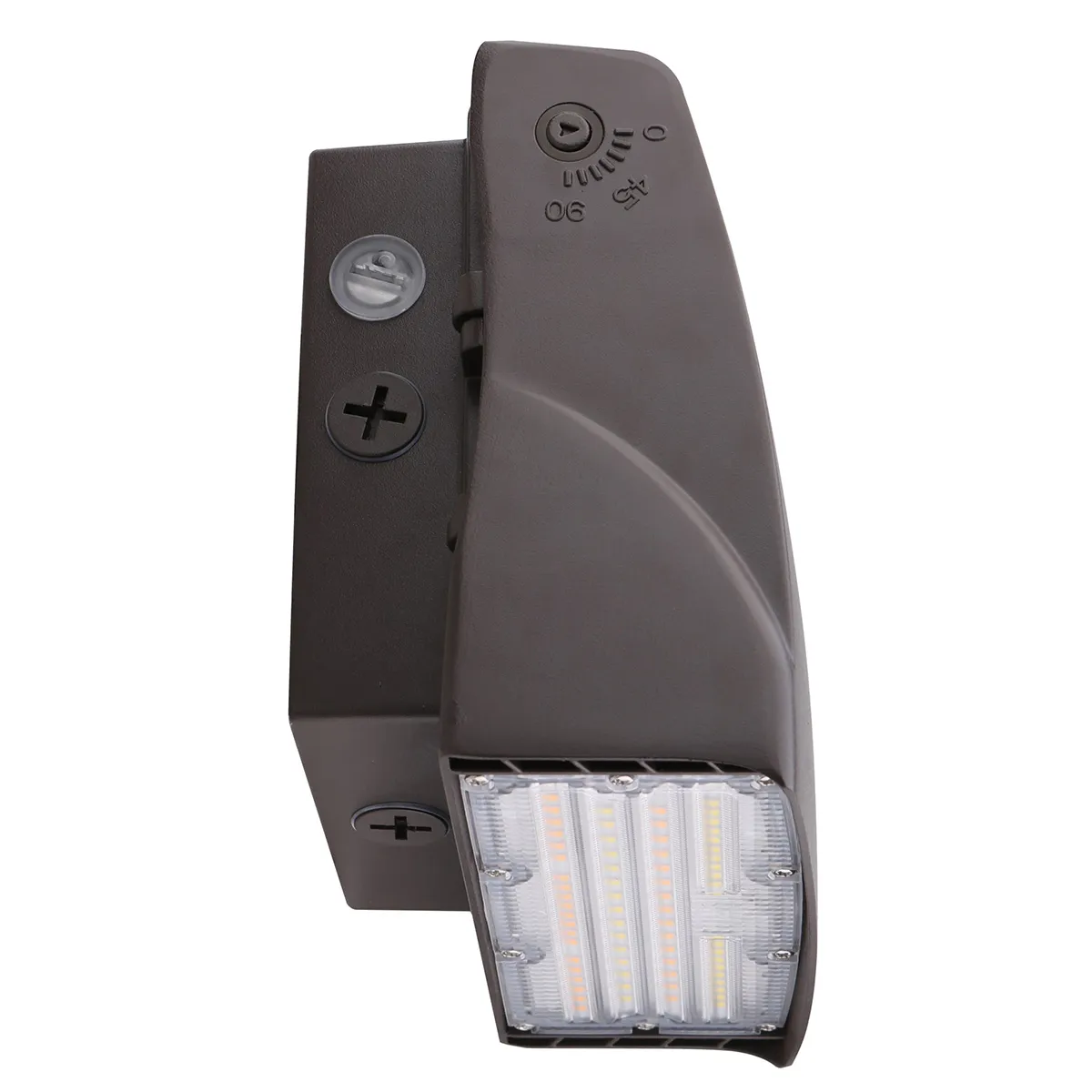

Home Wall Packs AWP-5-WS-CS-U-PC Adjustable Wall Pack 100/110/120W Color Selectable with Photocell by Halco
Specification Sheet
Installation Instructions
Dimensions

AWP-5-WS-CS-U-PC Adjustable Wall Pack 100/110/120W Color Selectable with Photocell by Halco

$230.83

The Adjustable Wallpack offers a modern full cut-off design that is a perfect solution for a broad range of outdoor lighting applications. The AWP is designed with ProLED Select technology, that allow users to select between the desired lumens and CCT for their application. The AWP pivoting head enables the installer to adjust between 0-90 degrees, putting light where you need it most. The AWP comes standard with an integrated photocell That is easily enabled or disabled, providing dusk-to-dawn controls for even greater energy savings. With ProLED Select Technology, adjustable head and built-in photocell, the AWP is one of the most versatile wallpacks in the market.  This wallpack has a hinged door for easy access and installation, multiple conduit entry points and 0-10 VDC dimming.  Applications include building entrances, loading docks, walkways and storage facilities.

  • Field selectable CCT between 3000K,4000K and 5000K
  • Field adjustable lumens
  • Integrated photocell with enable/disable function
  • Adjustable head-pivots up to 90 degrees
  • Dark sky friendly when mounted at 0 setting
  • Recessed optics for increased visual comfort

Brand :
Halco
Model Number :
AWP-5-WS-CS-U-PC
Style :
Adjustable
Optics :
Type III
Mounting :
Fixed Wall Mount
Watts :
Selectable 100/110/120W
Lumens :
Selectable 16,738 - 31,110 lm
Voltage :
120-277V
Color Temperature :
3000K, 4000K, 5000K, Selectable
CRI :
70+
Finish :
Bronze
Dimmable :
Yes
Ratings :
IP65, Wet Location
Certifications :
DLC Premium, RoHS Compliant, cULus Listed, FCC
Dimensions (L x W x H) :
12.68" x 12.4" 8.86"
