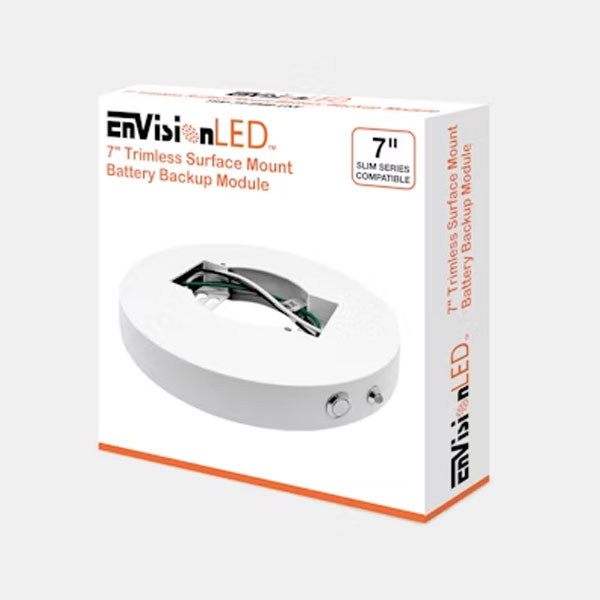

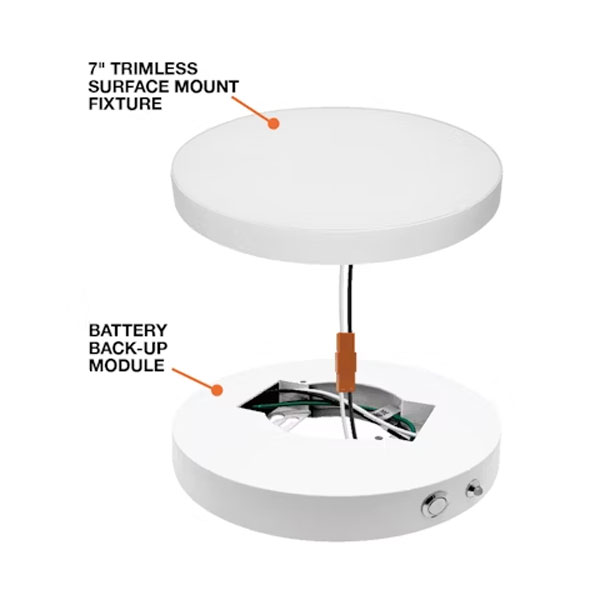

Home Emergency Lighting 7" TSM-7R-EMB-UNV Trimless Surface Mount Emergency Backup by EnvisionLED
Specification Sheet
Installation Instructions
Dimensions

7" TSM-7R-EMB-UNV Trimless Surface Mount Emergency Backup by EnvisionLED

$112.50

Detail Specifications:

  • Finishes: White
  • IP Rating: Wet Location
  • Full brightness backup power
  • Lithium-ion battery
  • 90 minute emergency mode
  • Operating Temperature: -40° - 114° F
  • Lens: Frosted Acrylic, non-yellowing
  • Average life (L70) of 50,000 hours

Driver Option:

  • 120V Triac dimmable down to 5%
  • THD: <20% (+/-5% tolerance), PF >0.9, 50/60Hz
  • Flicker Free

Product Information:

  • Available in 2 different sizes
  • Empty module version available
  • Standard white round trim included: optional trims available

Mounting & Installation:

  • 3O/4O Junction Box (including pancake j-box)
  • Surface mount bracket included
  • 4" & 6" Recessed can converter available
  • Compatible with correlating 7" & 9" fixture sizes

Certifications:

  • ETL Listed for USA and CA
  • CA Title 24 JA8-2022 CEC Listed
  • 5 Year Limited Warranty
  • FCC CFR 47, GCC Part 15, Subpart B:2017
  • IC Rated and ASTM-E283 Air-Tight
  • Complies with UL 263, ASTM E119, CAN ULC S10


Brand :
EnvisionLED
Model Number :
TSM-7R-EMB-UNV
Type :
Other
Mounting :
Ceiling
Input Voltage :
120V
Environment :
Wet Location
Housing Color :
White
Technology :
NA
Material :
Not Available
Battery Type :
Lithium
Remote Capable :
No
Ratings :
Wet Location
Compliance :
CA Title 24, FCC 47CFR Part 15 Consumer
Safety Certification :
NA
Dimensions (L x W x H) :
7.00" x 7.00" x 1.00"
