Home Downlights 7" DDX Gen 1 Series Surface Mount LED Dome Downlight, 12W, 120V, 5CCT Selectable, White Finish by Trace-Lite
Specification Sheet

7" DDX Gen 1 Series Surface Mount LED Dome Downlight, 12W, 120V, 5CCT Selectable, White Finish by Trace-Lite

$12.55

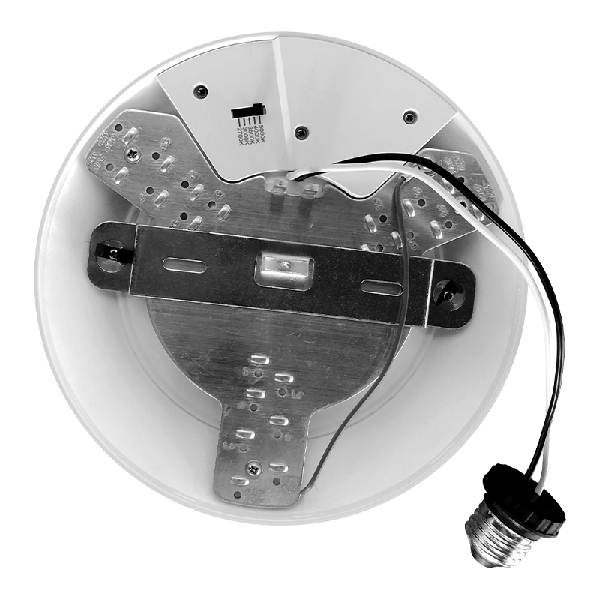

The DDX Gen 1 series is a 120V surface mount, LED dome downlight that provides project flexibility with field-selectable color temperature (2700K, 3000K, 3500K, 4000K, and 5000K CCT). The DDX offers 960 lumens and includes a simple snap-on mounting bracket to simplify installation directly to a junction box. The DDX can also easily retrofit 4” to 6” cans with its included friction clips and its E26 medium screw-base Edison connector. This fixture is not only Energy Star certified but is California Title 24 JA8-2019 compliant. This attractive surface mount downlight is ideally suited for residential, retail, light commercial and other interior spaces that utilize a traditional downlight or surface mount product.



Brand :
Trace-Lite
Model Number :
DDX-D6-12-C5
Style :
Fixed Recessed
Aperture Size :
7"
Shape :
Round
Lumens :
960 lm
Watts :
12W
Input Voltage :
120V
Color Temperature :
Selectable, 2700K, 3000K, 3500K, 4000K, 5000K
CRI :
90+
Beam Angle :
120°
Housing :
Retrofit, Surface Mount
Dimmable :
Yes
Trim Finish :
White
Ratings :
Damp, JA8, Title 24
Safety Certification :
FCC, UL Listed
Dimensions (L x W x H) :
7.3" x 7.3" x 1.5"
