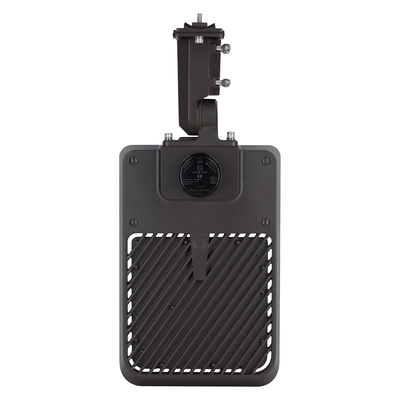

40/60/80W Area Flood 6A, 120-347V, CCT Selectable, Type 3, Bronze Finish by Ledvance

$265.82

The Performance Class Dual Selectable Area Flood offers 3 CCTs and 3 lumen outputs in the same product, an integrated 7-pin NEMA receptacle and field installable screw-in sensors. Available in multiple distribution options, it is ideal for parking lots, walkways and general outdoor area lighting.

  • Up to 160 LPW
  • Selectable color temperature: 3000K, 4000K, and 5000K
  • CRI >80
  • FLEXMOUNT: Universal bracket for slip fitter, wall, round and square pole mounting
  • DLC 5.1 Premium listed to maximize rebate opportunities and to provide even, uniform lighting
  • Ready for field installable standalone sensors and LEDVANCE LINK™ Bluetooth® controllers and sensors, no wiring required
  • 7-pin NEMA receptacle + shorting cap (optional photocell available as an accessory)

SKU: AREAFLD6AS080UNHDSC2T3BZ

Product Code: 63846


Brand :
Ledvance
Model Number :
63846
Shape :
Rectangular
Optics :
Type III
Mounting :
Slip Fitter, Wall Fixed
Voltage :
120-347V
Lumens :
14,400 Lm / 19,200 Lm / 24,000 Lm
Watts :
90/120/150W
Color Temperature :
3000K, 4000K, 5000K, Selectable
CRI :
80+
Dimmable :
Yes
Finish :
Bronze
Ratings :
DLC Premium, Wet Location
Safety Certification :
UL Listed, IP65, FCC, RoHS
Dimensions (L x W x H) :
24.21" x 11.81" x 5.90"
Weight :
10.69
