Home Area, Site, and Roadway 185/210/290W SlipFitter-Mount LED Area Light w/ Optic Swap, CCT Selectable, 120-277V, White Finish by Keystone
Specification Sheet
Installation Instructions

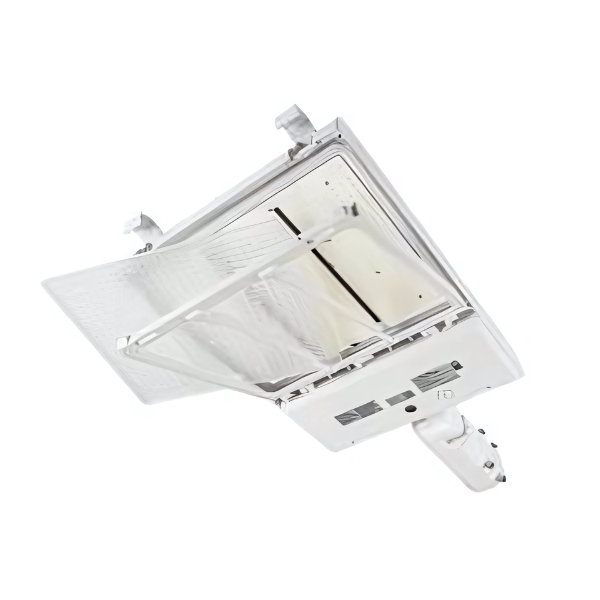

185/210/290W SlipFitter-Mount LED Area Light w/ Optic Swap, CCT Selectable, 120-277V, White Finish by Keystone

$719.92

  • Keystone Power Select technology
  • Keystone Color Select technology (3000/4000/5000K)
  • Innovative optic swap capability
  • Three lenses in the box: Type III installed, Types IV and V included
  • Heavy-duty, die-cast aluminum housing with ample heat sinking
  • Keystone 0-10V dimming driver with 6kV surge protection
  • Ambient operating temperature: −40°C/−40°F to 50°C/122˚F
  • UL Certified; IP65 rated
  • Power factor: > 0.95
  • THD: < 20%
  • LED chip lifetime: L70 > 100,000 hrs
  • Low-profile design delivers high-performance illumination

Brand :
Keystone
Model Number :
KT-ALED290PS-L2-OSB-SF-8CSB-VDIM-P-W
Shape :
Rectangular
Optics :
Type II, Type III, Type IV, Type V
Mounting :
Slip Fitter
Voltage :
120-277V
Lumens :
22,970-42,770 lm
Watts :
185/210/290W
Color Temperature :
3000K, 4000K, 5000K, Selectable
CRI :
80+
Dimmable :
Yes
Finish :
White
Ratings :
DLC Premium
Safety Certification :
UL Listed, RoHS
Dimensions (L x W x H) :
19.72" x 13.97" x 3.01"
Weight :
17.53
