Home Constant Current D700C120UVT-VJ 120W 700mA Everline Universal Voltage LED Driver with J-Box Stud Mount by Universal
Specification Sheet

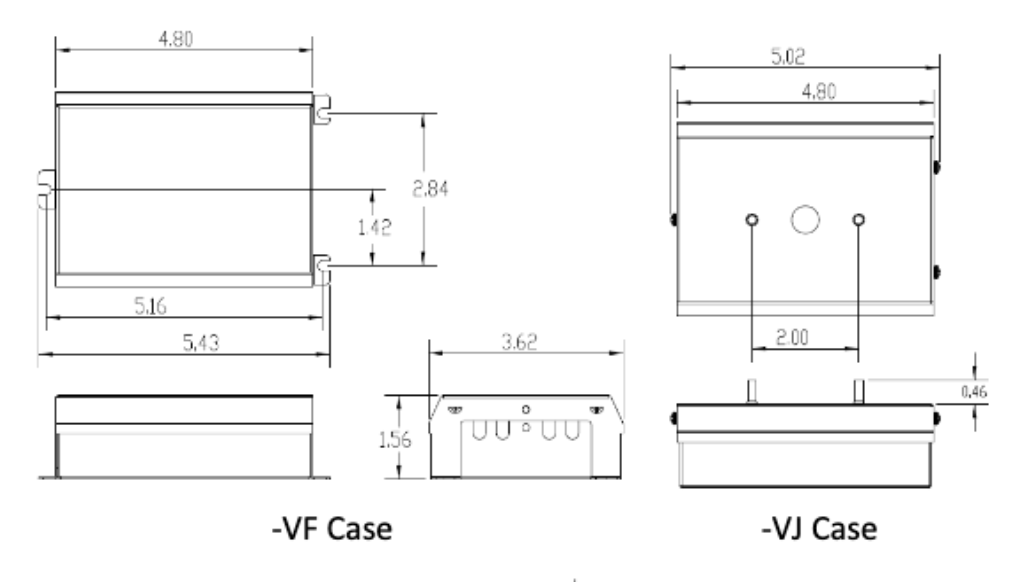

Dimensions

D700C120UVT-VJ 120W 700mA Everline Universal Voltage LED Driver with J-Box Stud Mount by Universal

$69.99

  • 120W Output
  • 0-10V Dimming w/ Tunable Output
  • 12V Power source for Active cooling device
  • Thermal Foldback Control
  • UL Dry and Damp Location Rated, Type HL
Part No.: D700C120UVT-VJ

  Note: Product has been discontinued by the manufacturer, but a replacement is available. Any orders of this product will be fulfilled with an equivalent substitute.


Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
D700C120UVT-VJ
Brand :
Universal Lighting Technologies
Max Wattage :
120W
Input Voltage Range :
120-277V
Output Voltage :
60-172V
Current Range :
21-700mA
Default Current :
700mA
Dimmable :
0-10V
Dimming Range :
10-100%
Dimensions (L x W x H) :
5.02" x 3.62" x 1.57"
